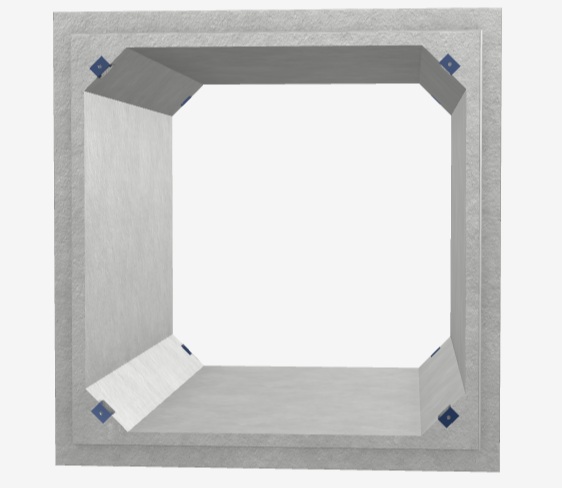

Precast Box Culverts

A practical solution for drainage and water crossings.

Bring your drainage and crossing requirements to VBRMC. Precast reinforced concrete box culverts provide an enclosed passage for water beneath roads, access routes and developed sites. Factory-made sections can reduce site concreting and help keep installation work moving.

Manufactured Before They Reach Your Site

A precast box culvert is made from reinforced concrete sections that are placed end to end to form a continuous passage. Casting and curing take place before delivery, allowing the site team to focus on preparation, positioning and jointing.

For projects with limited working space or tight construction windows, this approach can shorten the period spent building the culvert body on site. The foundation, inlet, outlet and surrounding works remain part of the approved project design.

Why Choose Precast Box Culverts?

Faster installation. Preformed sections reduce the shuttering, reinforcement fixing and concrete pouring needed for the culvert body at site.

Consistent sections. Controlled production supports repeatable dimensions and fit between adjoining units.

Design flexibility. Opening dimensions, section lengths and structural details can be selected to suit hydraulic and loading requirements, subject to manufacturing capability.

Less prolonged disruption. A shorter installation period can help reduce the duration of road closures and interference with nearby activities.

Applications

Precast box culverts can be considered for:

Cross-drainage beneath roads and access routes
Municipal and urban stormwater networks
Industrial, commercial and residential site drainage
Irrigation and agricultural water crossings
Short-span crossings and selected railway applications, subject to approved structural design

Each application requires a suitable hydraulic and structural assessment.

Specify the Culvert Around the Project

The right section starts with the site requirements. Share the following information when making an enquiry:

Project detail	Information to provide
Opening and alignment	Required clear width, clear height, culvert length and layout
Loading and cover	Traffic or railway loading, earth cover and construction loads
Materials and drawings	Specified concrete grade, reinforcement details and approved drawings
Joint requirements	Joint configuration, sealing requirements and acceptance criteria
Supply planning	Quantity, project location, site access and required delivery dates

Final dimensions, grades, load capacity and available joint options should be confirmed against the approved design and supply proposal.

Joints and Installation

Culvert performance depends on the complete installed system. Prepared bedding, correct levels, careful handling and accurate alignment help adjoining sections fit as intended. Joint materials and sealing details should match the specified performance requirements.

Coordinate delivery with lifting equipment and the installation sequence. Backfilling, compaction and inspection should follow the project specifications.

Discuss Your Project with VBRMC

VBRMC, Vashistha Bricks & RMC Pvt. Ltd., supplies precast construction materials and ready-mix concrete. Its approach centres on time, transparency and trust.

Share your drawings and project schedule to discuss box culvert availability, technical requirements and the proposed supply scope.

Frequently Asked Questions

Can box culverts be used beneath roads?

Yes, when the sections and installation are designed for the required traffic loads, earth cover and site conditions.

Are precast box culverts completely watertight?

Sealing performance depends on the joint system, installation and specified test requirements. Confirm the required leakage limits during design and procurement.

What information is needed for a quotation?

Provide dimensions, quantities, loading requirements, drawings, project location and the required delivery schedule.

Plan Your Next Drainage or Crossing Project

Contact VBRMC with your requirements to discuss product feasibility and request a quotation.

Phone: +91 886 884 3405
Email: info@vbrmc.com
Website: https://vbrmc.com/
